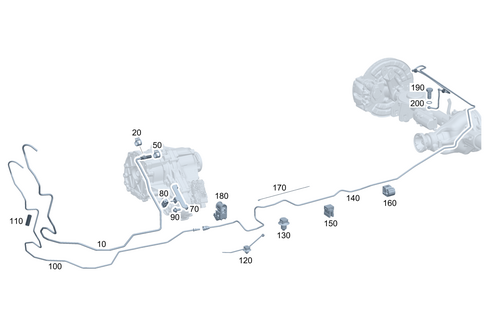

Major Assembly Ventilation for 2024 Mercedes-Benz G63 4x4 Squared AMG
No.
Part # / Description / Price
Price
10
MSRP $120.00
$87.84
20
Spring Hose Clamp
Mercedes-Benz
Mercedes-Benz Description: Bleed line mount. To vent hose. Vent line to transfer case.
MSRP $2.50
$1.91
MSRP $2.50
$1.91
80
Clamp Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Regeneration line. For purge line. Bleed line mount. Bleed line to holder.
90
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Oil filler pipe to transmission. Oil line left to oil pan. Starting cable to engine. High pressure expansion hose to oil pan.
MSRP $2.40
$1.78
MSRP $2.40
$1.78
100
MSRP $135.00
$98.82
110
Hose Section Mercedes-Benz
Mercedes-Benz Description: Brake line to fire wall. Right rear brake line to cross member. Chafe protection. Front right brake line mounting to right longitudinal member. 4,5 x 14,5 x 40. At brake line between hydraulic unit and frame bracket. To fuel line. To spring tower, left. Protection against scoring for pipe line.
MSRP $3.70
$2.79
MSRP $3.70
$2.79
120
Cable Strap Mercedes-Benz
Mercedes-Benz Description: 80MM. 2,5X102MM
Diameter: 7,9mm
Inside diameter: 0,75mm
Outside diameter: 22 mm
Material thickness: 1mm. AERATION/VENTILATION. 2,5X102MM
Diameter: 7,9mm
Inside diameter: 0,75mm
Outside diameter: 22 mm
Material thickness: 1mm.
Diameter: 7,9mm
Inside diameter: 0,75mm
Outside diameter: 22 mm
Material thickness: 1mm. AERATION/VENTILATION. 2,5X102MM
Diameter: 7,9mm
Inside diameter: 0,75mm
Outside diameter: 22 mm
Material thickness: 1mm.
MSRP $1.70
$1.27
MSRP $1.70
$1.27
130
Cable Strap Mercedes-Benz
Mercedes-Benz Description: For bore diameter 6.5 to 7 mm. 202X4.6MMDiameter: 6,5mmMaterial thickness: 1,2mm. FOR 6.4 TO 7.1 MM HOLE DIAMETER. 202X4.6MMDiameter: 6,5mmMaterial thickness: 1,2mm. For bore diameter: 6.5-7.0mm. 202X4.6MMDiameter: 6,5mmMaterial thickness: 1,2mm. HOSE TO H ...
MSRP $2.90
$2.16
MSRP $2.90
$2.16
150
Cable Strap Mercedes-Benz
Mercedes-Benz Description: FOR SHEET THICKNESS: 1-3 MM
Material thickness: 1,3mm.
Material thickness: 1,3mm.
MSRP $2.90
$2.16
MSRP $2.90
$2.16
170
Cable Tie Mercedes-Benz
Mercedes-Benz Description: 380x7.8mm. 7.9 x 375 mm. Front line mount. 7.9 X 375 MM. Backrest frame. 7.9 x 375 mm. Attachment noise encapsulation. 7.9 x 375 mm. Line mounting. 7.9 X 375 MM. Sensor cable. 7.9 x 375 mm. Antinoise capsule,left. 7.9 x 375 mm.
180
Line Fastener Mercedes-Benz
Mercedes-Benz Description: Gas line mount. Front line mount. In right wheel well. To right valve unit. Line to body.
190
Banjo Bolt Mercedes-Benz
Mercedes-Benz Description:
Diameter: 8mm
Strength / hardness class: ST
Thread code letter: M
Thread pitch: 1mm
Width across flats: 12mm.
Diameter: 8mm
Strength / hardness class: ST
Thread code letter: M
Thread pitch: 1mm
Width across flats: 12mm.
MSRP $6.50
$4.83
MSRP $6.50
$4.83
200
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: FRONT AXLE BREATHINGStrength / hardness class: CUInside diameter: 8mmOutside diameter: 11,5mmMaterial thickness: 1mm. LEAK OIL LINE TO FRONT HYDROPNEUMATIC SPRING LEGStrength / hardness class: CUInside diameter: 8mmOutside diameter: 11,5mmMaterial thicknes ...
MSRP $2.20
$1.65
MSRP $2.20
$1.65
340
Banjo Bolt Mercedes-Benz
Mercedes-Benz Description:
Diameter: 10mm
Strength / hardness class: ST
Thread code letter: M
Thread pitch: 1mm
Width across flats: 14mm.
Diameter: 10mm
Strength / hardness class: ST
Thread code letter: M
Thread pitch: 1mm
Width across flats: 14mm.
350
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: TRANSFER CASEStrength / hardness class: CUInside diameter: 10mmOutside diameter: 13,5mmMaterial thickness: 1mm. FUEL PUMPStrength / hardness class: CUInside diameter: 10mmOutside diameter: 13,5mmMaterial thickness: 1mm. OIL LINE ON RING CYLINDERStrength / ...
370
MSRP $16.50
$12.45
380
Cable Strap Mercedes-Benz
Mercedes-Benz Description: Rear line mount. 4,6X162,6 MM
Diameter: 6mm
Material thickness: 1,3mm. Mounting material 4.6X160 MM. 4,6X162,6 MM
Diameter: 6mm
Material thickness: 1,3mm. From valve block to pressure reservoir. 4,6X162,6 MM
Diameter: 6mm
Material thickness: 1,3mm.
Diameter: 6mm
Material thickness: 1,3mm. Mounting material 4.6X160 MM. 4,6X162,6 MM
Diameter: 6mm
Material thickness: 1,3mm. From valve block to pressure reservoir. 4,6X162,6 MM
Diameter: 6mm
Material thickness: 1,3mm.
