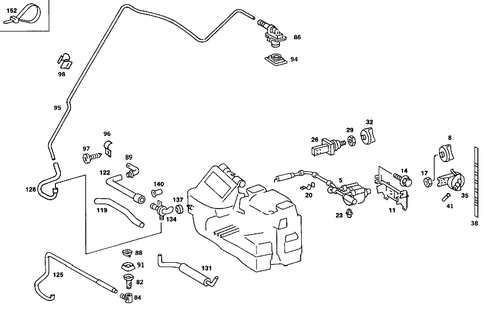

Operating Unit for 1984 Mercedes-Benz 380SE
No.
Part # / Description / Price
Price
8
Knob
Mercedes-Benz
Mercedes-Benz Description: Heater case operating unit. Defroster/legroom nozzle operating unit.
11
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Blower resistor. Operating unit to heater case.
17
Nut Mercedes-Benz
Mercedes-Benz Description: Light switch to instrument panel. Light rotary switch. Operating unit. Central covering to heater case. Air-conditioner temperature/vacuum switch to covering in case.
MSRP $3.70
$2.79
MSRP $3.70
$2.79
32
Knob Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Blower switch. Operating unit lever to legroom flap lever at central air duct.
MSRP $40.00
$30.48
MSRP $40.00
$30.48
35
Operating Unit, AC System Mercedes-Benz
Mercedes-Benz Description: At operating unit bracket, used for automatic heating,right.
35
Operating Unit, AC System Mercedes-Benz
Mercedes-Benz Description: At operating unit bracket, used for automatic heating,left.
88
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Temperature sensor and thermostat. On instrument panel.
89
Fitting Mercedes-Benz
Mercedes-Benz Description: Breathing,to temperature sensor &thermostat,thru right front panel pillar.
89
Fitting Mercedes-Benz
Mercedes-Benz Description: Breathing,to temperature sensor &thermostat,thru right front panel pillar.
91
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FOR REPAIR PURPOSES ONLY
FOR REPAIR PURPOSES ONLY
Description: Instrument panel.
94
Cover Mercedes-Benz
Mercedes-Benz Description: Interior temperature sensor to roof rail. Inboard. On roof rail. Panelling to roof rail.
95
Hose Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Between roof rail mounted temperature feeler & air-blast nozzle. From temperature sensor on roof rail to air-blast nozzle hose 1670 mm.
98
Clamp Mercedes-Benz
Mercedes-Benz Description: Flexible shaft to covering. Oxygen sensor plug connection to main floor.
98
Clamp Mercedes-Benz
Mercedes-Benz Description: Line mounting. To tank drainage. Tank filler neck drain pipe. Vacuum line. Hose. Wiring harness fastening starter/ alternator.
122
Hose Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Between air-blast nozzle and breather fitting.
125
Hose Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Between temperature sensor and air nozzle.
128
Hose Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Between temperature sensor and air nozzle.
131
Hose Mercedes-Benz
Mercedes-Benz Description: Air guide hose to roof rail and to airblast nozzle. Between air-blast nozzle and breather fitting.
131
Hose Mercedes-Benz
Mercedes-Benz Description: Air guide hose to roof rail and to airblast nozzle. Between roof rail mounted temperature feeler & air-blast nozzle.
152
MSRP $4.90
$3.68
No.
Part # / Description / Price
Price
44
Operating Unit Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Automatic air conditioner.
47
Operating Unit, AC System Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: To kammerer. Temperature selector. To 124 830 21 85. To 124 830 22 85.
53
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),"off".
56
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),refrigerant compressor off.
59
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),refrigerant compressor on.
62
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),overall ventilation.
65
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),defrosting.
68
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Blower maximum output control.
71
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Automatic blower control.
74
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Blower minimum output control.
MSRP $20.00
$15.24
MSRP $20.00
$15.24
77
Guide Sign Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
ONLY USED WITH AUTOMATIC AIR CONDITIONER
ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: In french.
77
Guide Sign Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
ONLY USED WITH AUTOMATIC AIR CONDITIONER
ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: In german.
95
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: FROM EXPANSION TANK TO ENGINE 1200 MM. 8X15 MMInside diameter: 8mmOutside diameter: 15mmMaterial thickness: 3,5mm. FROM EXPANSION TANK TO ENGINE 1575 MM. 8X15 MMInside diameter: 8mmOutside diameter: 15mmMaterial thickness: 3,5mm. FROM EXPANSION TANK TO RAD ...
MSRP $50.00
$38.10
MSRP $50.00
$38.10
96
Clamp Mercedes-Benz
Mercedes-Benz Description: Connector to bottom mounting angle and to central side door. Lines to frame.
96
Clamp Mercedes-Benz
Mercedes-Benz Description: For return line at wheel arch pan. For return pipe to wheel arch. Main cable harness to left wheel arch panel. Return line to wheel arch panel.
107
Blower Mercedes-Benz
Mercedes-Benz Description: Temperature sensor ventilation. Blower to air duct.
MSRP $82.00
$60.27
MSRP $82.00
$60.27
113
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: At blower;temperature sensor ventilation. Blower to air duct.
No.
Part # / Description / Price
Price
44
Operating Unit Mercedes-Benz
Mercedes-Benz Description: Automatic air conditioner. Heater housing.
MSRP $328.00
$229.32
MSRP $328.00
$229.32
